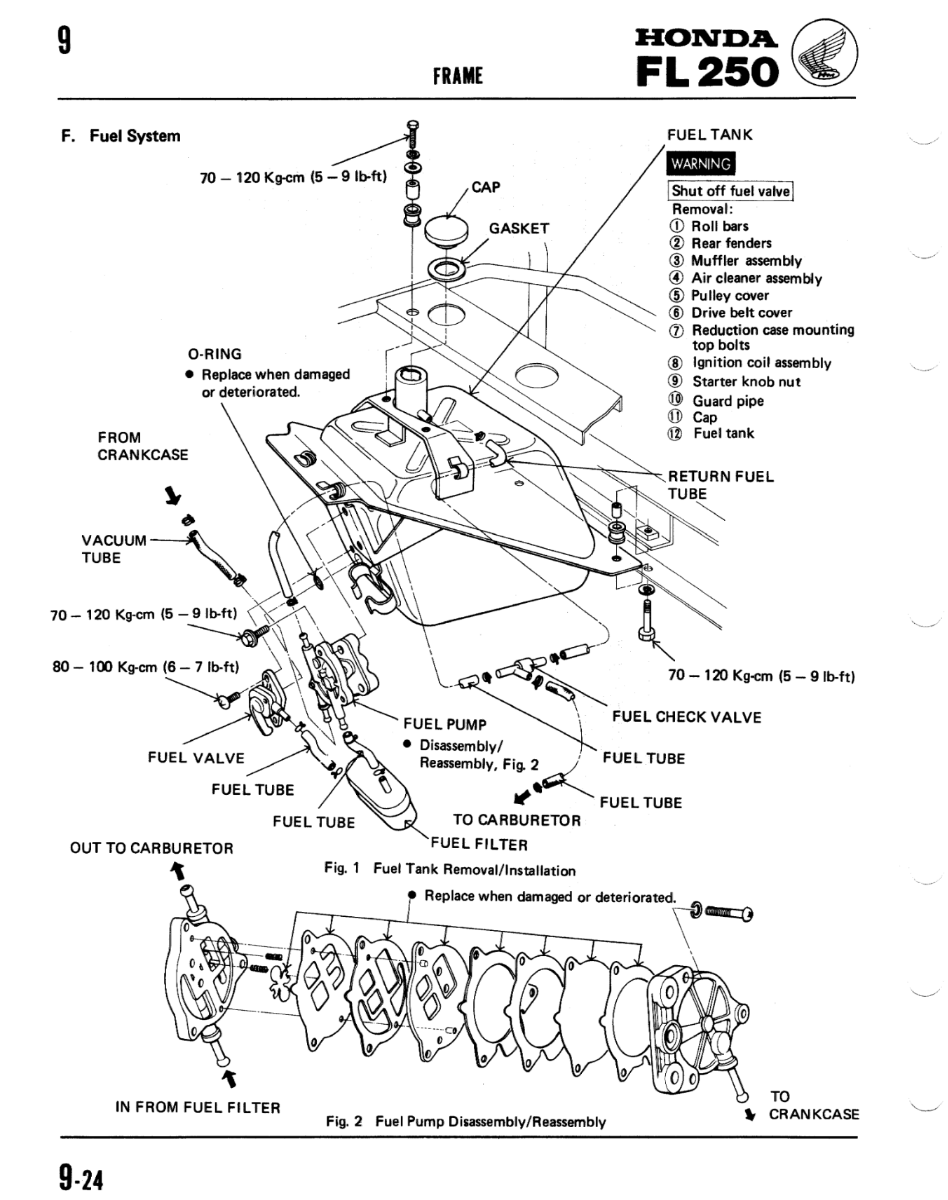

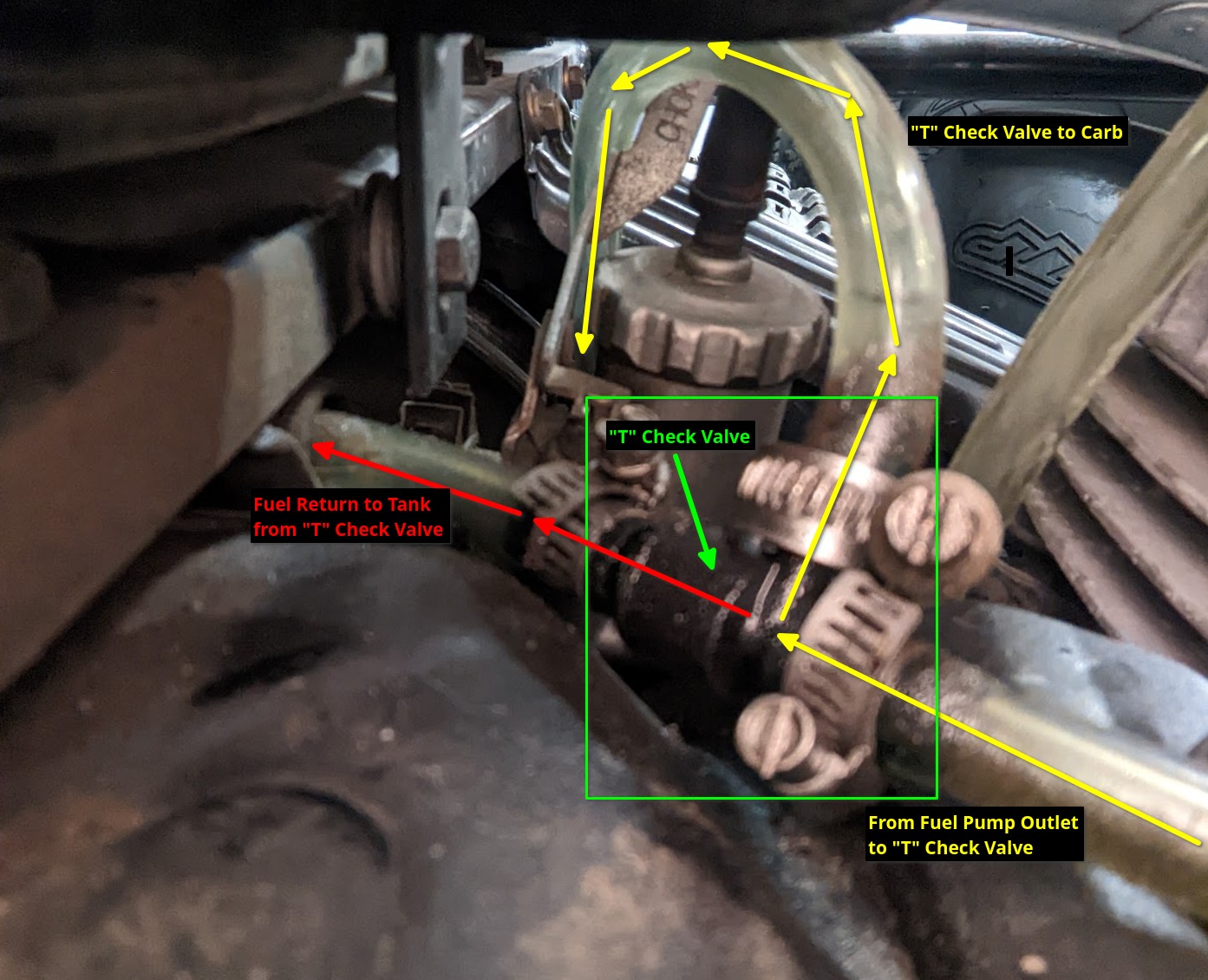

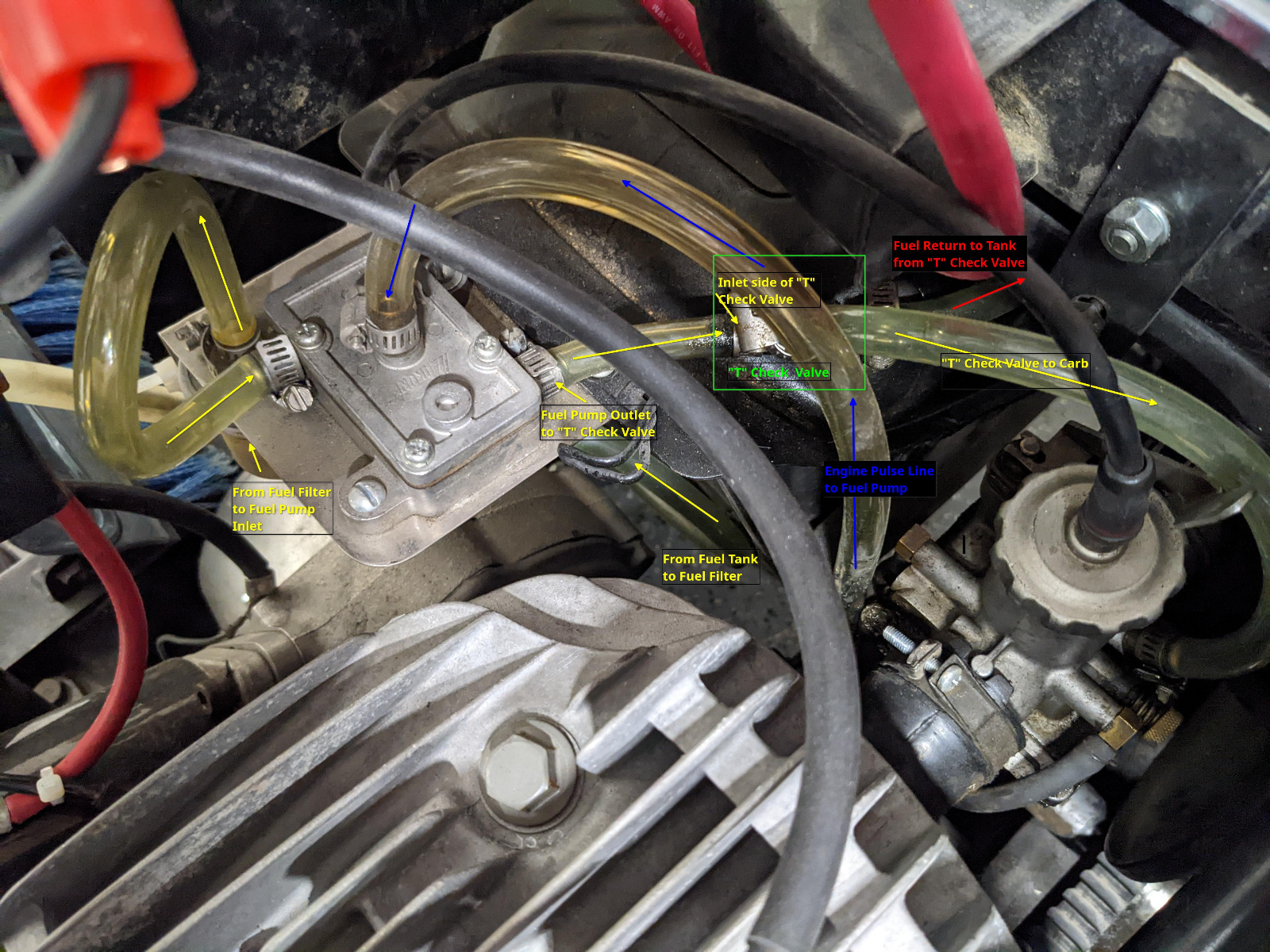

This is an image of the shop diagram for fuel line routing. Below is a picture of the routing with markings to indicate what goes where. Note!!! The image below is not true to stock as a different fuel filter and fuel pump mounting location was added for this particular machine. The routing of the fuel lines in relation to where everything goes is true.
